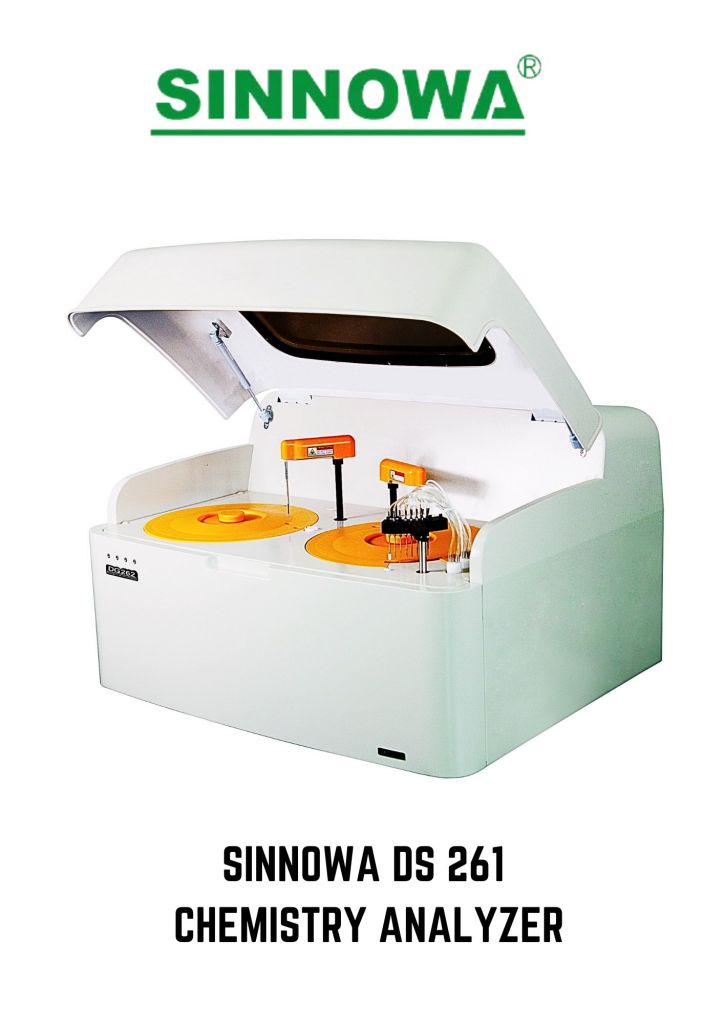

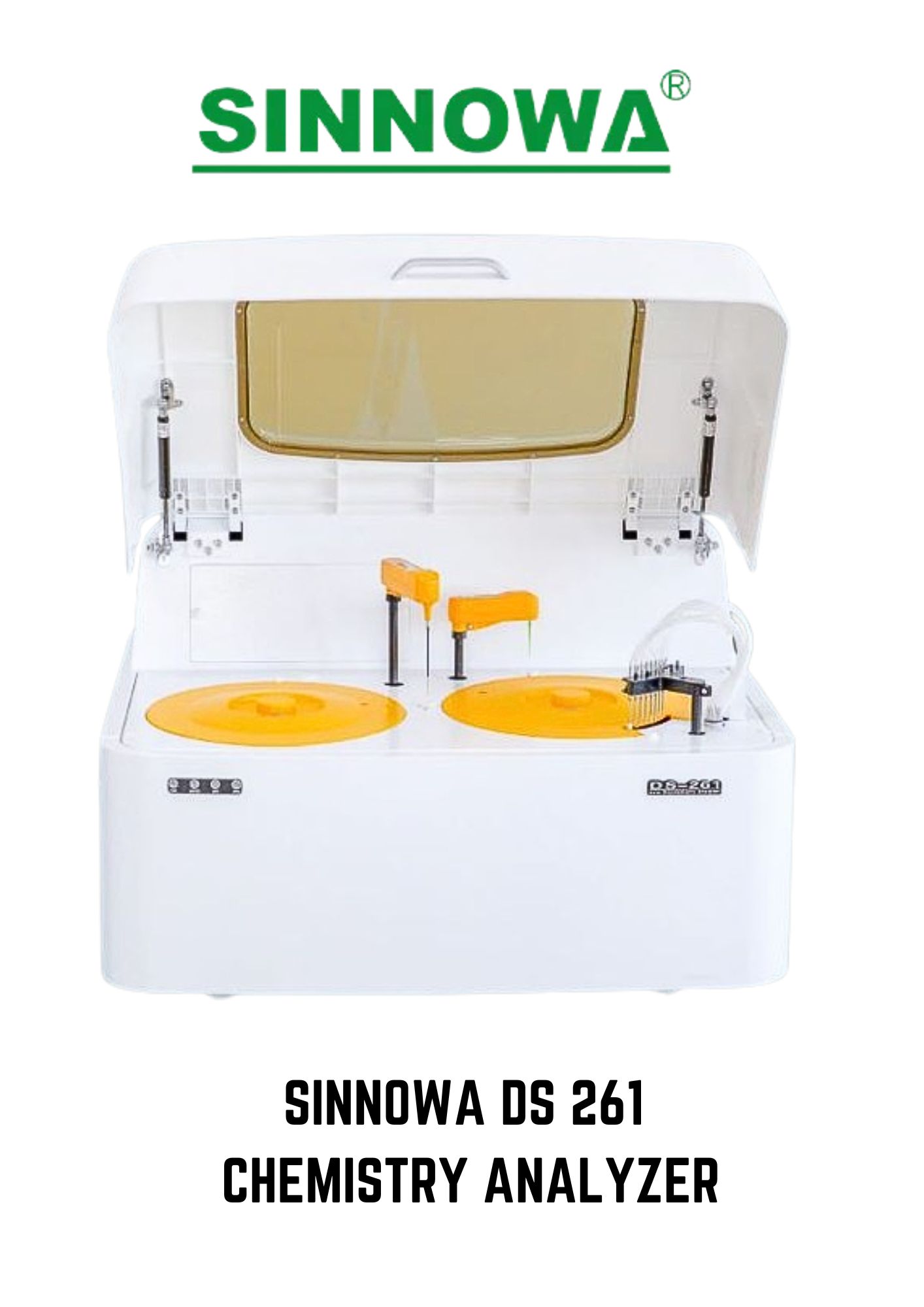

SINNOWA DS261 is a random-access, high-speed fully automatic clinical chemistry analyzer, with intelligent multitasking software, automatic calibration, barcoding, innovative cuvette washing station. The photometric throughput is 270 tests/hour. Concentric sample and reagent-refrigerated disks compact and speed up the system.
Throughput: 270 tests/hr or 420 test/h with ISE Assay type: End Point, Kinetic, Differential, Bichromatic, and Immunoturbidimetric, 1-3 reagent assays
Reagent Positions: 2 cooled trays | 40 reagent
positions
Sample positions: 60 positions including standard, control, and stat.
Minimum reaction volume: 180 UL
sample volume: 1.0 – 100UL (1UL incr. )
reagent volume: 1.0 -600UL (1UL incr. )
Reaction plate: 90 high quality cuvettes

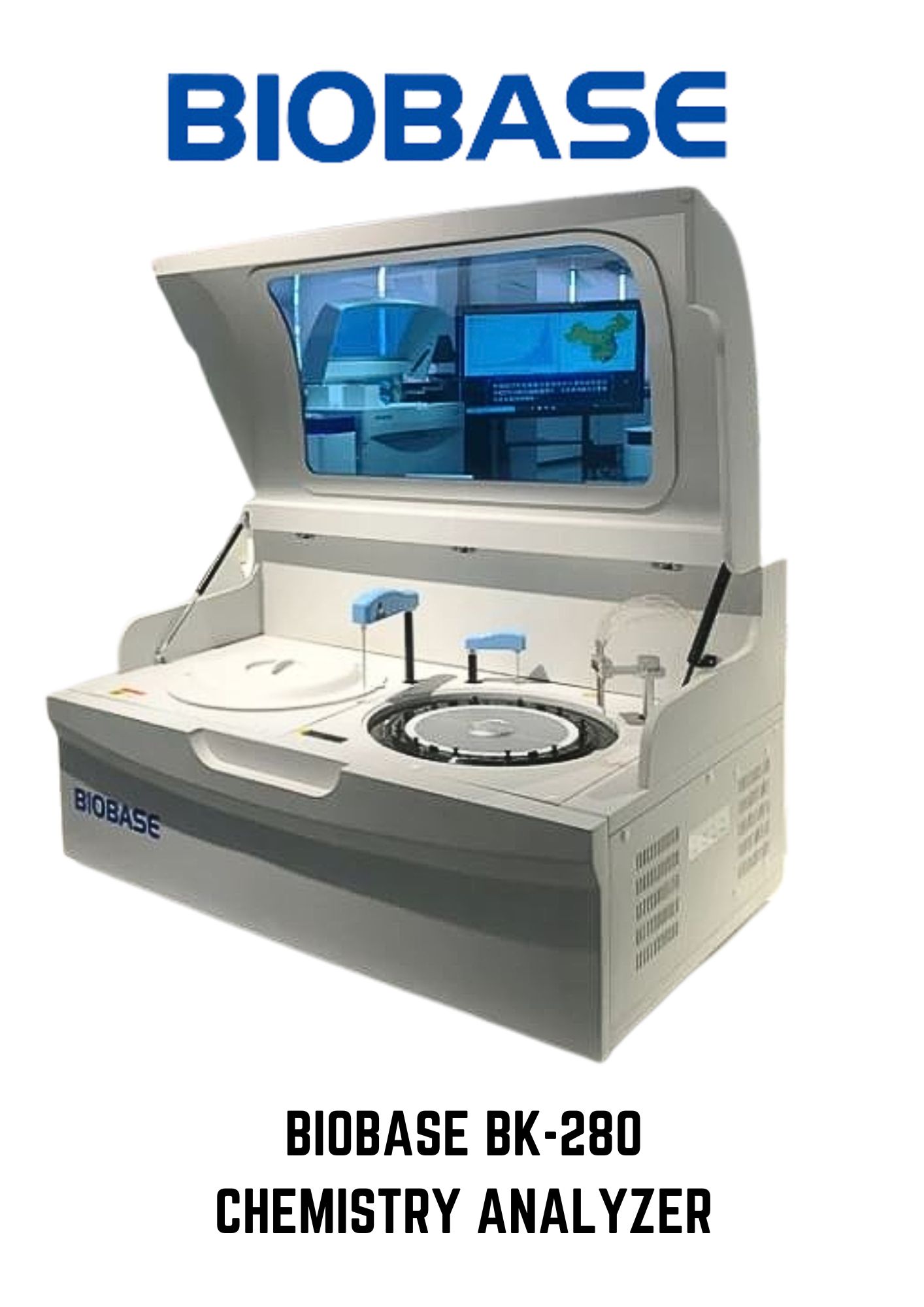

Throughput: 200Tests/Hour
Analysis Method: End-point, Fixed-time, Rate(Kinetic), Turbidimetry
Sample & Reagent Unit
Sample Positions: 49 sample positions
Reagent Positions: 56 reagent positions
Sample Volume: 2~70μl
Reagent Volume: 20~350μl
Reaction System
Temperature Control: 37±0.1°C, real-time monitor
Cuvettes: 120 reusable cuvettes, optical length 6mm
Mixer Probe: Independent stirring
Washing: Automatic cuvettes washing
STAT function: YES
Calibration & QC
Calibration: Linear: K factor, 1-point, 2-point and multipoint linear Non-Linear: Spline, Polygon, Index, Ogarithm, Logit-4P, Logit-5P Quality Control: Real-time QC, Westgard multi rule, Cumulative sum check, Twin Plot(2D)
Working Conditions
Power Supply: AC220V±10%, 60/50Hz, 110V±10%, 60Hz, 300W Temperature: 10~30°C
Water Consumption: Deionized water: 5L/H
Humidity: 30-80%
Size & Weight
External Size (WDH): 950612510mm
Net Weight: 75kg
Package Size(WDH): 11187281151mm
Gross Weight: 130kg

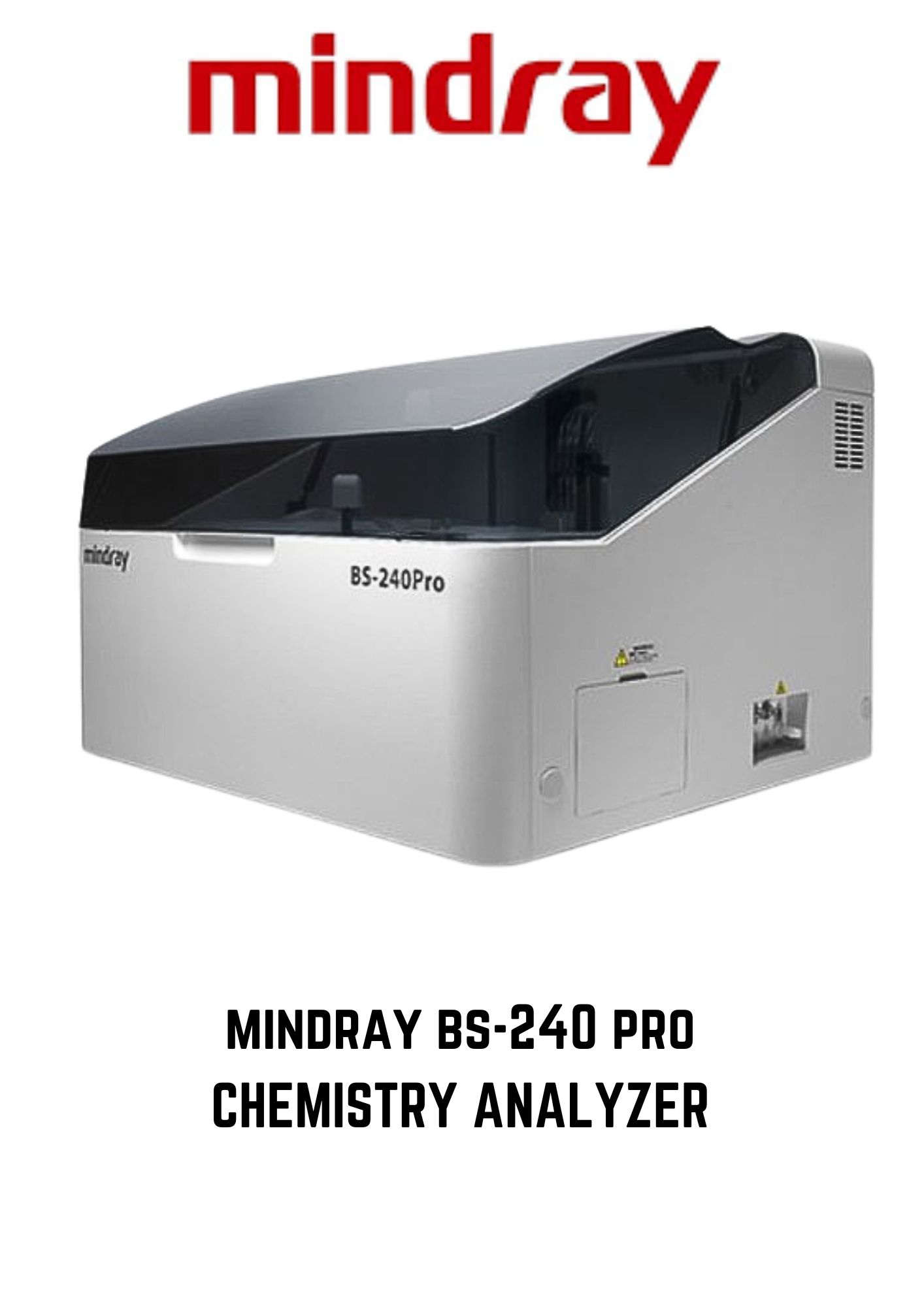

Sample throughput: Constant 240 tests/h, up to 400 tests/h with ISE
Dimensions: 860 × 550 × 660 mm (w × h × d) Weight: 115 kg
Highlights:
Constant throughput with 240 photometric t /h, up to 400 tests/h with ISE module
Large and flexible capacity: up to 100 sample /reagent positions (50 fixed + 50 interchangeable)
Reduced reagent consumption: 100 μL minimum
reaction volume
Intelligent probe with liquid level detection, V&H collision detection, inventory monitoring, reagent pre-heating and optional clog detection
Grating photometer with 12 wavelengths, dual-diaphragm and dual-lens
HbA1c smart-sampling function, automatic hemolysis

System function
Automatic, Discrete, Random Access, Bench-top
STAT sample priority
Throughput: Up to 200 tests/hour, up to 400 tests/hour with ISE Measuring principles: Absorbance photometry, Turbidimetry, Ion Selective Electrode technology
Reagent volume: 100~250μl, step by 0.5μl
Sample volume: 2~45μl, step by 0.1μl
Reagent/Sample probe: Liquid level detection, vertical collision Cuvette: 40 disposable cuvettes
Reaction volume: 100~360μl
Control and Calibration
Calibration modes: Linear (one point, two points and
multi-points), Logit-Log 4P, Logit-Log 5P,

spline, exponential, polynomial, parabola
Control Rules: X-R, L-J, Westgard multi-rule, Cumulative sum
check, twin plot
Operation Unit
Operation system: Windows 8
Interface: RS-232
Working Conditions
Power Supply: 200~240V, 50/60Hz, ≤1000VA or 100~130V,

60Hz, 1000VA
Dimension: 690 mm (length) ×580 mm (depth) ×595 mm
(height)
Weight: 47 kg
Water Consumption: ≤ 2 L/H

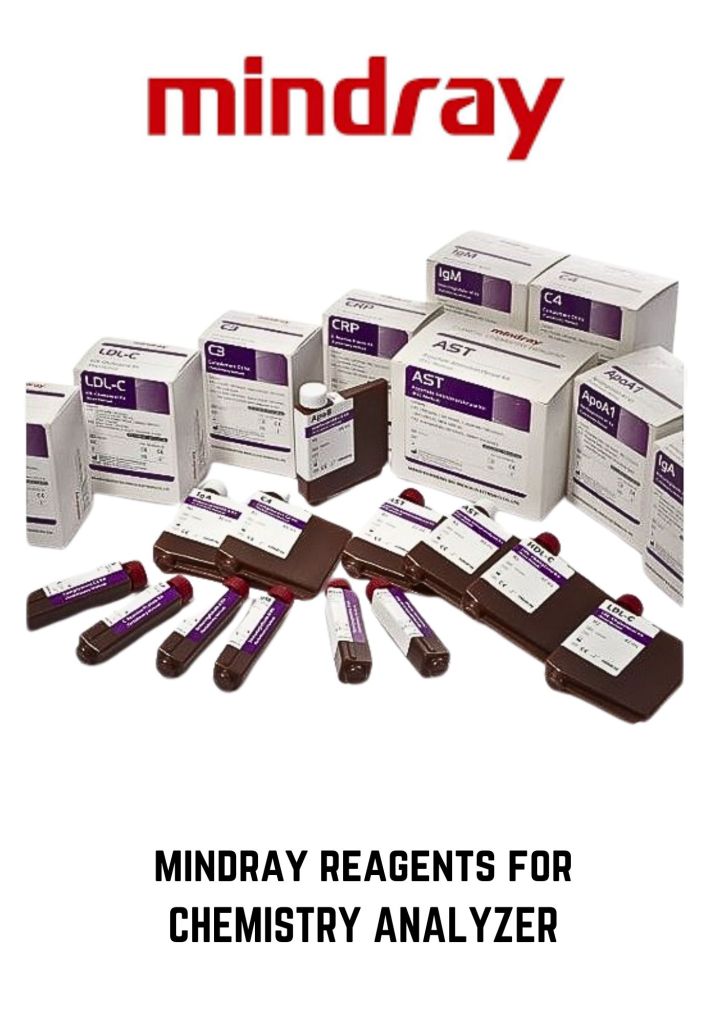

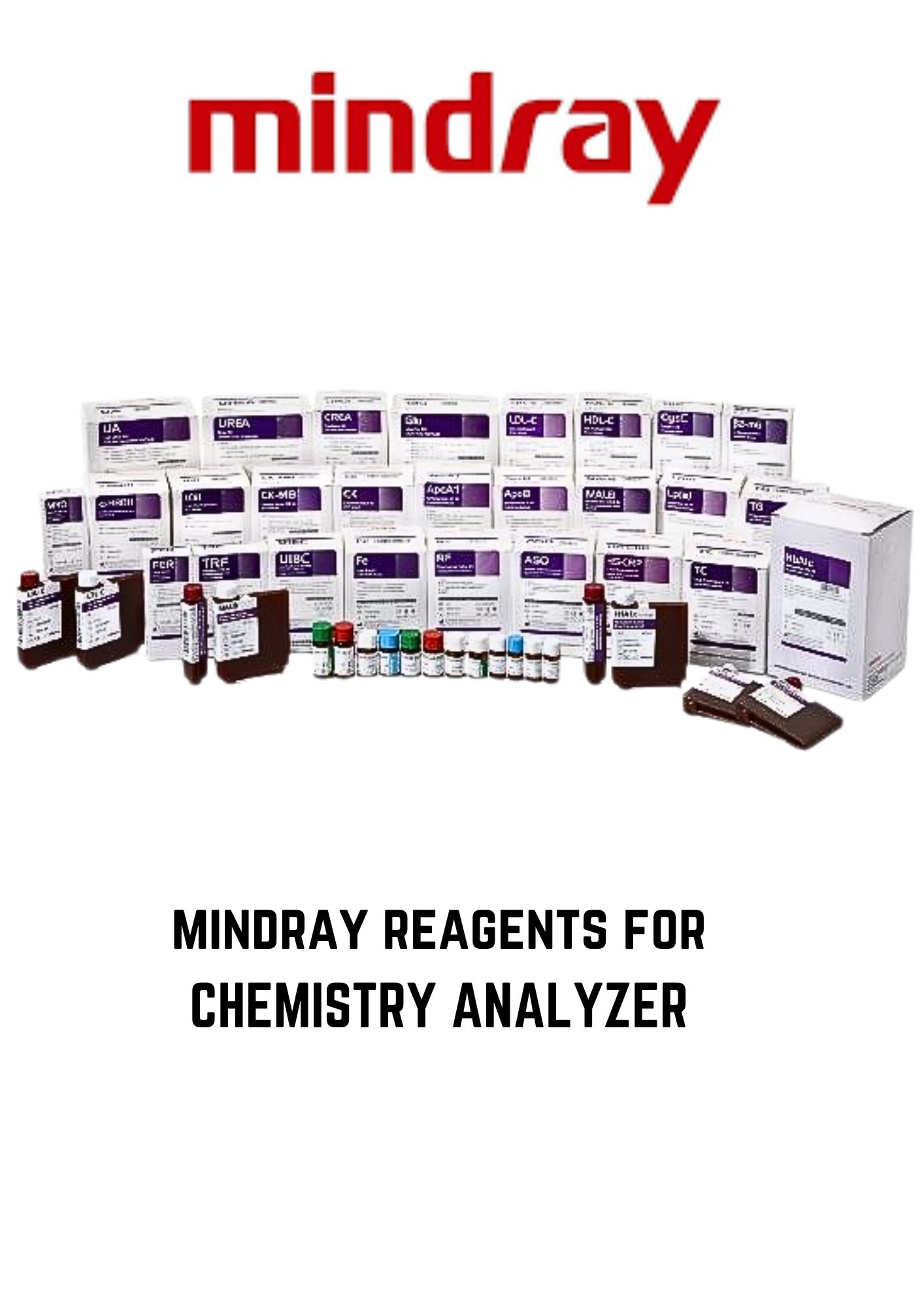

erfect Matching System – running our system-pack reagents on our effective chemistry analyzers with parameter optimization will give the most accurate results and easy accessibility Comprehensive test items – including enzymes, substrates, specific proteins and electrolytes to satisfy clinical needs Liquid stable technology – all reagents are available as stable liquids, ready to use, which saves time, labor and reagent waste Excellent performance – wide linear range, good reproducibility and stability, strong anti-interference to ensure reliable test results
Cost saving – accommodating packaging, minimal dead volume and suitable R1/R2 volume ratio helps to eliminate unnecessary expense
Bulky package available – the best cost-effective and competitive package can serve your needs for all chemistry analyzers

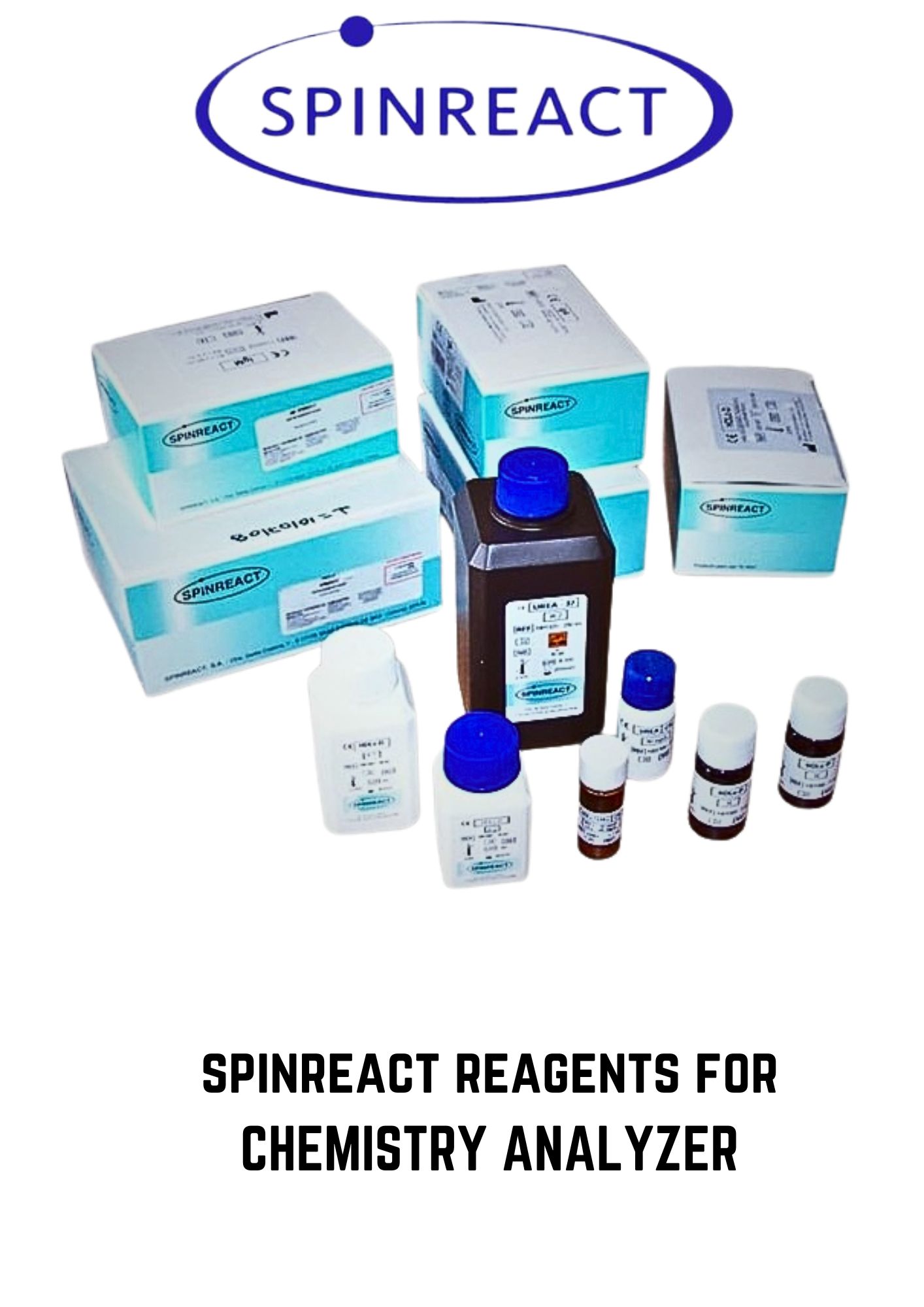

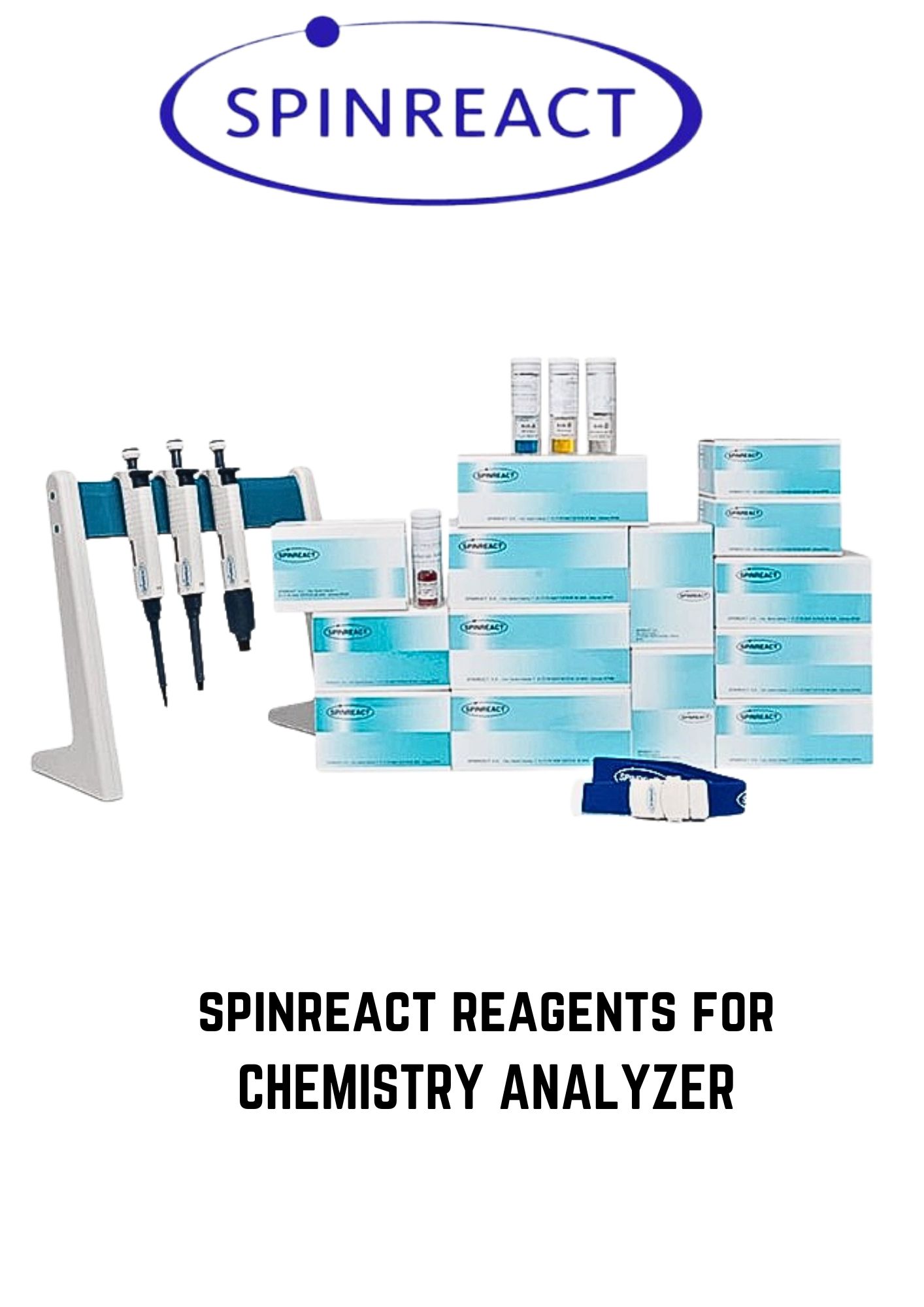

Spinreact offers a wide range of reliable reagents for Clinical Chemistry , Serology and Quality control to help the laboratory enhance the efficiency of the operation. Leading to the improvement of the patient.

Reagents add a substance or chemical compound to set off a chemical reaction. Technicians can use this reaction to test for a chemical’s presence, making them excellent for reaching certain diagnoses or conducting lab experiments.
